The Y-Track Hanger Shot Blasting Machine is an ideal solution for high-volume batch processing of components with complex shapes. It offers uniform surface preparation, reduced cycle time, and options for customization based on part size and production demand.
Applications:
● Aluminum Die Cast Components (GDC/LPDC)
● Ferrous & Non-Ferrous Castings
● Forged Parts
● Fabricated Metal Components
● Engine and Suspension Parts
● General Foundry & Automotive Industry Use

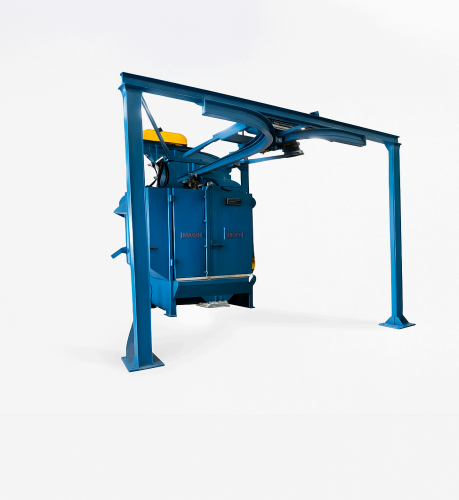

Y-Track Hanger Type Shot Blasting Machine
Available Capacities: 300KG, 500KG, 750KG, 1000KG
How the Y-Track Hanger Type Blast Machine Works?
The Y-Track Hanger Type Shot Blasting Machine is designed for surface cleaning, descaling, and deburring of castings, forged parts, and fabricated components. This machine uses a double-door cabinet
system with an overhead Y-type monorail track, allowing continuous loading/unloading without stopping the blasting cycle.
1. The components are loaded on a hanger and moved into the blasting chamber via a Y-track.
2. The door is closed, and the blasting process starts.
3. Multiple turbine wheels blast high-velocity abrasive media onto the components, thoroughly cleaning the surface.
4. The hanger rotates during blasting, ensuring uniform cleaning from all angles.
5. After completion, the hanger is moved out while the next hanger is ready to enter—ideal for high productivity.
Add-On Features (Optional)
- Auto Door Opening/Closing Systems
- PLC + HMI Control Panel with Recipe Settings
- Advanced Dust Collector with Cartridge Filter & Pulse Jet Cleaning
- Safety Interlocks and Indicators for improved operator safety
- Crane for material handling
TECHNICAL SPECIFICATION OF “Y”-TRACK TYPE SPINNER HANGER
SHOT BLASTING MACHINE
The blast chamber of this machine is designed for a suitable length and appropriate sealing on entry sides so that the shot blasting operation is done in an enclosed area to contain flying abrasive. The jobs are loaded by customers on the Spinner Hook with the help of a suitable fixture.
| Description | ST-Y300 | ST-Y500 | ST-Y750 | ST-Y1000 |
|---|---|---|---|---|
| Cabin Size (mm) (L × W × H) |
1300 × 1300 × 1500 | 1400 × 1500 × 1800 | 1500 × 1600 × 2200 | 1800 × 1900 × 2500 |
| Overall Plant Size (mm) (L × W × H) |
1300 × 1300 × 3800 | 1400 × 1500 × 4200 | 1500 × 1600 × 4600 | 1800 × 1900 × 5200 |
| Bucket Elevator Size (mm) (L × W × H) |
250 × 600 | 300 × 700 | 300 × 700 | 300 × 700 |
| Dust Collector Overall Size (mm) (L × W × H) |
1800 × 1200 × 3300 | 2100 × 1200 × 3300 | 2100 × 1200 × 3300 | 2100 × 1200 × 3300 |
| Hook Capacity | 500 Kg | 1000 Kg | 1000 Kg | 1000 Kg |
| No. of Blast Wheels | 2 Nos | 2 Nos | 2 Nos | 3 Nos |
| Blast Wheel Size (mm) | 280 | 380 | 380 | 380 |
| Initial Fill of Abrasive (shots) By customer |
300 Kg | 500 Kg | 750 Kg | 1000 Kg |
| Blast Wheel HP | 7.5 HP × 2 motors (2800 rpm) | 10 HP × 2 motors (2800 rpm) | 12.5 HP × 2 motors (2800 rpm) | 15 HP × 3 motors (2800 rpm) |
| Hanger Motor (Hook Motor) | 1 HP | 1 HP | 1 HP | 2 HP |
| Bucket Elevator Motor | 1 HP | 2 HP | 2 HP | 3 HP |
| Dust Collector Motor | 7.5 HP | 7.5 HP | 10 HP | 10 HP |
| Total HP Required Electric Panel Options |
24.5 HP Manual or Automatic |
30.5 HP Manual or Automatic |
38 HP Manual or Automatic |
60 HP Manual or Automatic |
